Uni-T UT705 E-commerce Process Calibrator
-17%
Exclusif
En ligne !
Uni-T UT705 E-commerce Process Calibrator
Meilleur prix en ligne pour Uni-T UT705 E-commerce Process Calibrator.
Marque: Uni-t -
Code: INN_UT705 - Ean: 6935750570180
€ 490.40
€ 588.50
Vous économisez € 98.10
(−17%)
Disponible en stock
Uni-T UT705 is a current loop calibrator for industrial automation: it measures DC voltage up to 30,000 V and currents/loops up to 24,000 mA, with source and simulation functions. It offers 24 V loop power and ± (0.02% +2) accuracy for reliable calibration. Manual/automatic ramps, 25% and 100% steps, save/recall memories, backlit LCD and automatic shutdown. It resists 1 m falls. Included: tips, 9V battery, case and manual.
Description
Description Uni-T UT705 E-commerce Process Calibrator

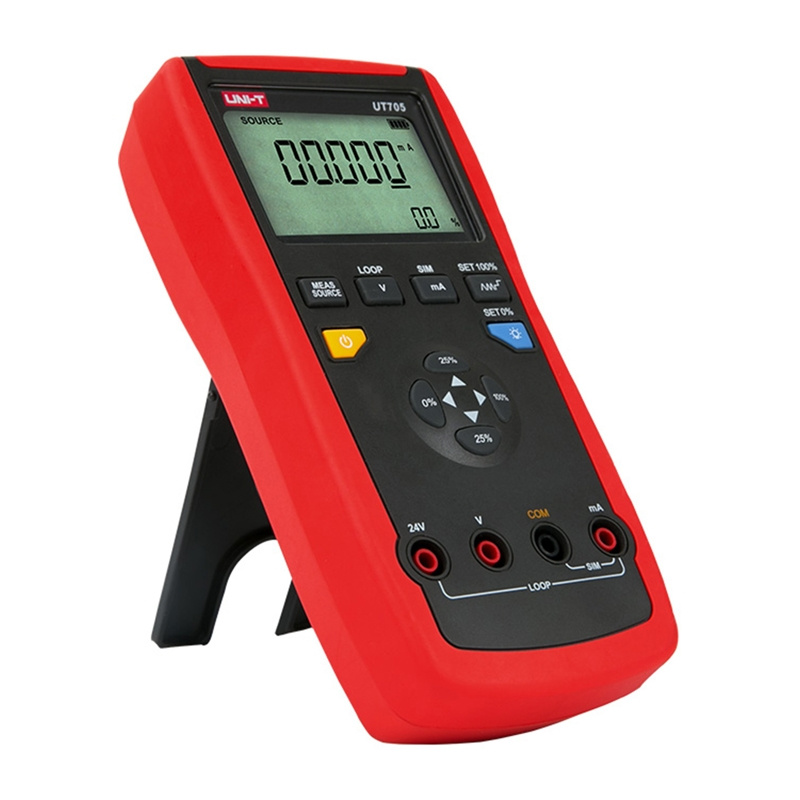

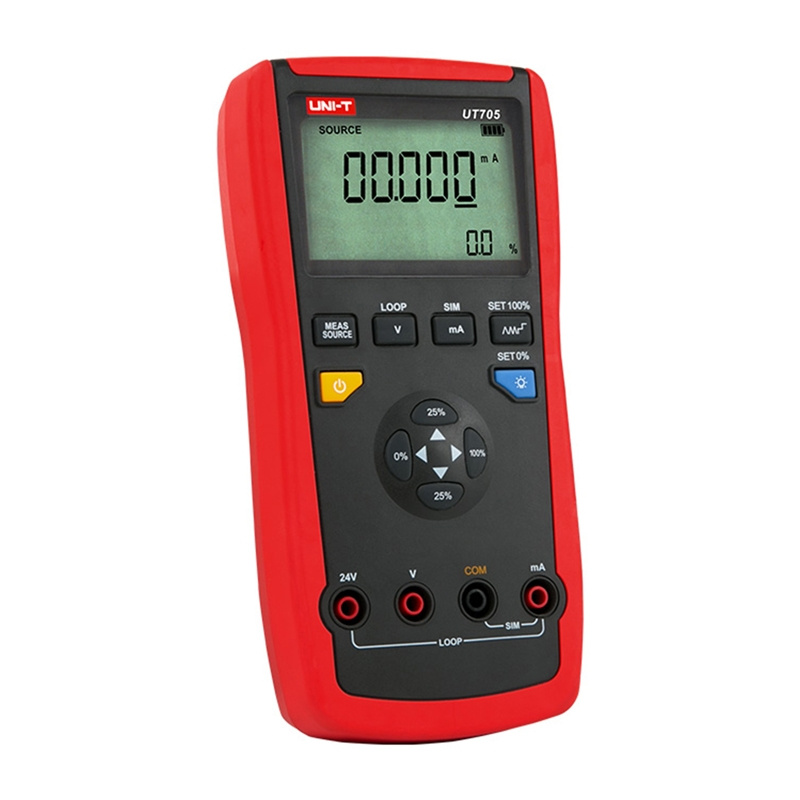

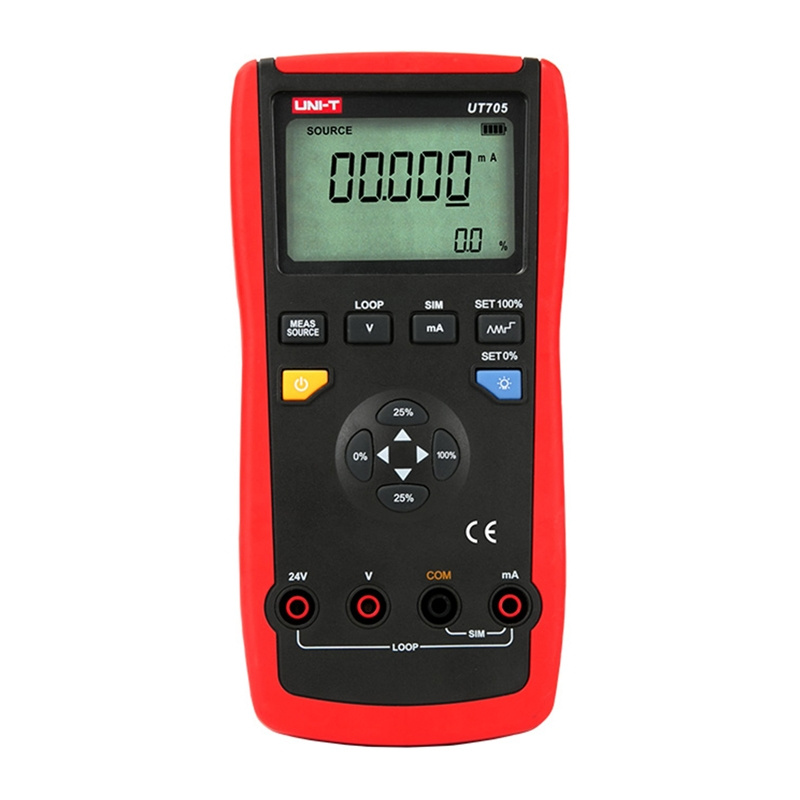

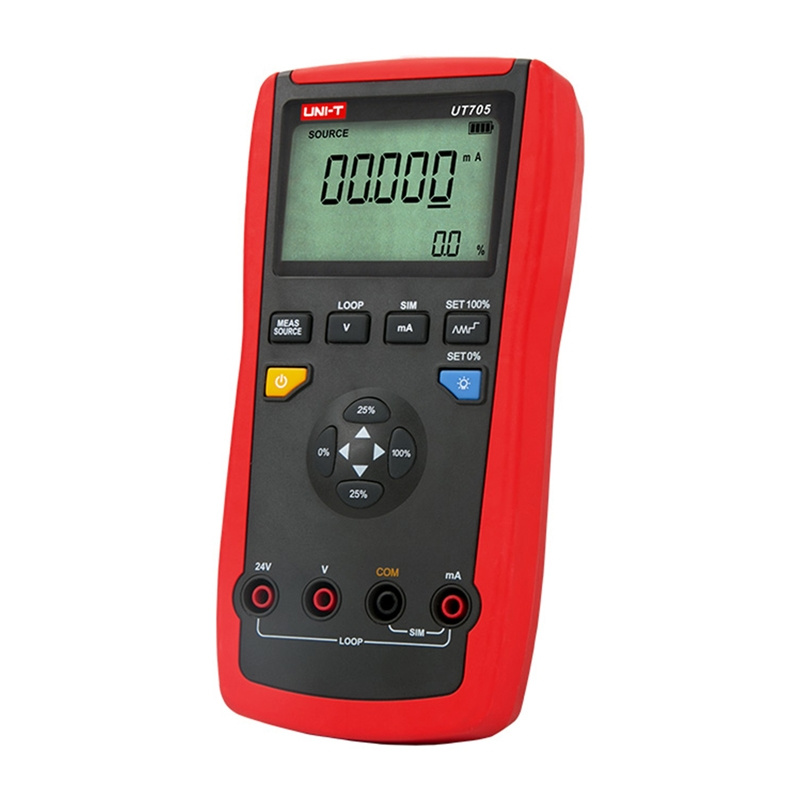

Uni-T UT705 Process Calibrator
The Uni-T UT705 is a current loop calibrator designed for calibration, diagnostics, and maintenance in industrial automation systems. The device can measure DC voltages up to 30,000 V, as well as DC and loop currents of up to 24,000 mA. It also supports DC current source, current simulation, and 24 V loop power functions, allowing for comprehensive testing and monitoring of transducers and other process system components. The high measurement accuracy of ± (0.02% +2) guarantees reliable results during demanding calibration tasks
.
Features to simplify daily work
The UT705 is equipped with manual and automatic signal ramp functions, 25% and 100% interval step modes, and the ability to save and recall settings, which significantly speeds up repetitive tasks. The backlit display makes it easy to read data under various lighting conditions and the automatic shutdown function helps conserve energy. With a weight of 410 g and dimensions of 96 × 193 × 47 mm, the device remains comfortable for transportation and daily use, and its resistance to falls from a height of 1 meter increases its durability during field work and in the workshop
.
Even
- Process calibrator
- Test leads (1 pair)
- 9V battery (6F22)
- Carry case
- User manual
Specifications
| Manufacturer: | Uni-T |
|---|---|
| Model | UT705 |
| Product Type Process | Loop Calibrator |
| DC voltage measurement range | 30,000 V ± (0.02% + 2) |
| DC current measurement range | 24,000 mA ± (0.02% + 2 | )
| Loop current measurement range | 24,000 mA ± (0.02% + 2 | )
| DC current source range | 24,000 mA ± (0.02% + 2 | )
| DC current simulation range | 24,000 mA ± (0.02% + 2 | )
| 24 V | loop power output |
| Loop feed accuracy | 10% |
| functions Slow ramp | , fast ramp, | step ramp
| Step functions | 25% of the interval, 100% of the interval |
| Settings memory (Save/Recall | ) Yes |
| LCD backlight Yes | |
| Automatic shutdown Yes | |
| Resistance to falls | 1 m |
| 9V battery | power supply | (6F22)
| Display size | 63 × 40 mm |
| Color | Red and gray |
| Dimensions | 96 × 193 × 47 mm |
| Weight | 410 g |
| CE, UKCA | certifications |
