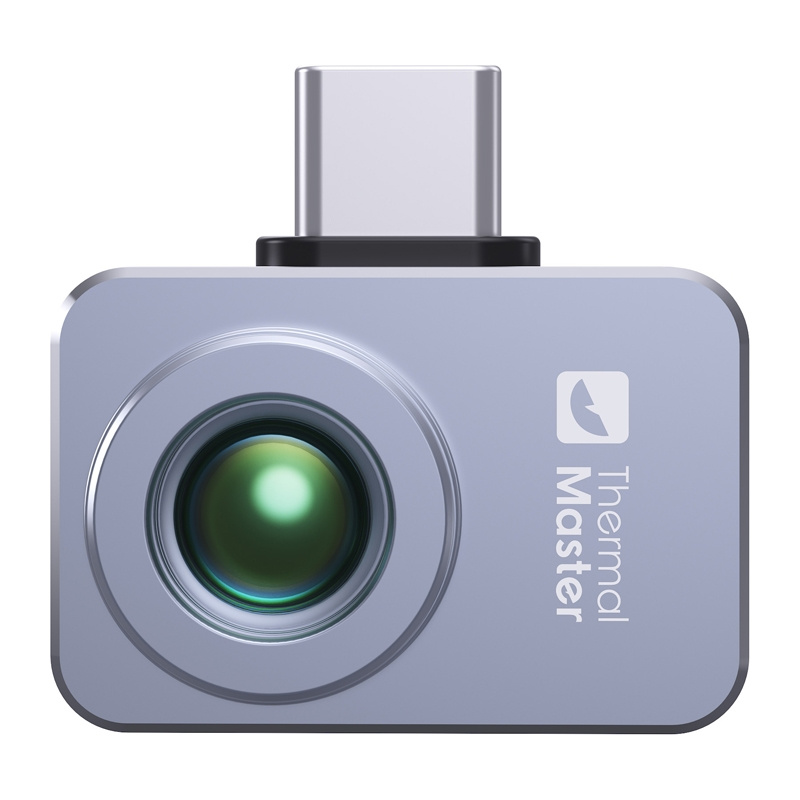

Thermal Master P2 Pro Mini USB-C Thermal Camera

MINI THERMAL MASTER P2 Pro Thermal Camera (USB-C): Professional Precision in Pocket Format

The THERMAL MASTER P2 Pro is a professional-grade mini thermal camera that combines an exceptionally compact design with precise diagnostic capabilities. Weighing only 9 g and dimensions of 27 × 18 × 9.8 mm, it is even smaller than the standard P2 model. Connected to a smartphone, it instantly transforms it into a professional thermal inspection tool. The device offers an infrared resolution of 256 × 192 pixels, enhanced to 512 × 384 pixels thanks to X³IR technology, a measurement range from -20°C to 600°C and an accuracy of ±2°C at the PCB level. The NETD thermal sensitivity ≤40 mK, the 15x digital zoom and a low power consumption of only 0.33 W make it an extremely effective tool for electronic engineers, electricians, HVAC installers and automotive diagnosticians.

Expanded Details with Razor X™ and X³IR

The image acquisition is managed by a VoX sensor with a resolution of 256 × 192 pixels and a pixel size of 12 μm. Using the Ultra Clear Image Razor X™ algorithm and X³IR technology increases image detail to 512 × 384 pixels, allowing you to see significantly greater detail than standard thermal cameras. The P2 Pro allows the observation of electronic components up to 0.25 × 0.25 mm, making it ideal for PCB diagnostics, the detection of overheated components and the detection of short circuits.

Macro Magnetic Lens for Precision Work on Electronics

The kit includes a macro magnetic lens that allows even greater detail when working with small components. This solution will be particularly appreciated by electronic technicians who repair motherboards, power supplies and mobile devices. The ability to closely observe miniature resistors, capacitors and integrated circuits significantly reduces diagnosis time and makes it easier to identify faults.

Wide Measurement Range and High Thermal Sensitivity

The THERMAL MASTER P2 Pro measures temperatures from -20°C to 600°C, making it suitable both for precision electronic diagnostics and for the inspection of electrical systems, HVAC systems and motor components. The accuracy of ±2°C and the IQ+ Precision Temp technology guarantee reliable results, while the very high sensitivity of NETD ≤40 mK allows even the smallest temperature differences to be detected. This makes it easy to detect overheated cables, energy losses, thermal bridges, or malfunctioning components.

Professional Analysis in the Temp Master App

The dedicated Temp Master app allows spot, linear and surface analysis at no additional cost. You can choose from 12 color palettes, such as White Hot, Black Hot, Iron Red and Red Hot, save photos and videos and use the Colorbar function, which highlights objects at a specific temperature. Emissivity, distance and ambient temperature adjustments are also available, increasing measurement accuracy under different conditions.

Minimum Energy Consumption and Long Battery Life

The camera is powered directly from the host device via a USB-C connection, eliminating the need for its own battery. With a consumption of only 0.33 W, it can operate for extended periods without significantly draining the smartphone's battery. Depending on the device, the operating time may vary from 300 to 480 minutes. For example, when connected to a Samsung Galaxy S23+ with a 4700 mAh battery, the camera can work for about 367 minutes.

One Device, Multiple Applications

The P2 Pro (USB-C) is compatible with Android 6.0 and higher smartphones. The camera can also be used with tablets and computers through the Temp Master app, offering greater convenience when analyzing and generating reports. The plug-and-play functionality allows you to start working immediately after connecting. The camera is ideal for PCB diagnostics, electronic repair, electrical inspections, HVAC systems, piping diagnostics, building energy audits, and automotive repairs. It can also be used to inspect photovoltaic panels, motor repairs, electrical panel monitoring, pneumatic inspections, and even outdoor applications such as hiking, fishing or animal tracking.

Included in the set:

• Thermal camera
• Magnetic macro lens
• USB-C extension cable
• Quick guide
