MINISFORUM M1 Plus Barebone Mini PC with Intel Core i5-12600H processor

MINIS FORUM M1 Plus Mini PC

The MINIS FORUM M1 Plus Mini PC with Intel Core i5-12600H processor (barebone version) is a compact desktop computer that combines high performance and complete customization options. It features an Intel Core i5-12600H processor (12 cores, 16 threads, up to 4.5 GHz), support for up to 96 GB of DDR5 memory (4800—5200 MHz), and space for a high-speed PCIe 4.0 NVMe drive. It also offers modern connectivity, including 40 Gbps USB4, HDMI 2.1, DisplayPort 1.4, Wi-Fi 6E and Bluetooth 5.2, allowing you to easily connect multiple devices at the same time. Note that this is a barebone version, so it doesn't include RAM, drive, or operating system. This allows the user to decide the final configuration themselves, adapting the hardware to their needs.

Tailored performance for work and entertainment

The Intel Core i5-12600H processor offers an excellent balance between performance and energy efficiency, making it suitable for both office work and more demanding tasks. With 12 cores and 16 threads, the computer handles multitasking efficiently, allowing you to work on multiple applications at the same time without any loss of fluency. High clock speeds in turbo mode translate into faster program starts and shorter data processing times. In addition, ample processing power allows for comfortable use of graphic editing tools, programming, or working with large files.

Graphics dependent on memory configuration

This model is equipped with an integrated Intel graphics card, whose performance is directly dependent on the RAM configuration. Using two modules (dual-channel), the most powerful Intel Iris Xe graphics are activated, which translates into better multimedia and graphics performance. If only one memory module is used, the system is based on less powerful Intel UHD graphics, which may limit hardware capabilities. This is important information when choosing components for a barebone system, since the correct choice of RAM has a real impact on performance.

Modern DDR5 memory and fast storage

DDR5 memory support offers higher bandwidth than previous standards, which results in smoother system and application performance. The possibility of expanding up to 96 GB offers great flexibility in creating configurations for professional work or advanced multitasking. Meanwhile, the PCIe 4.0 NVMe drive allows extremely fast data access, reducing system and application load times. As a result, the computer responds efficiently even under heavy use. The active cooling system is designed to effectively dissipate heat from key components, such as the memory and the unit. This allows the computer to maintain stable performance even during prolonged and intensive use. At the same time, noise levels remain low at up to 45 dB, which is important when working in a quiet environment.

Extensive connectivity and extensive expansion options

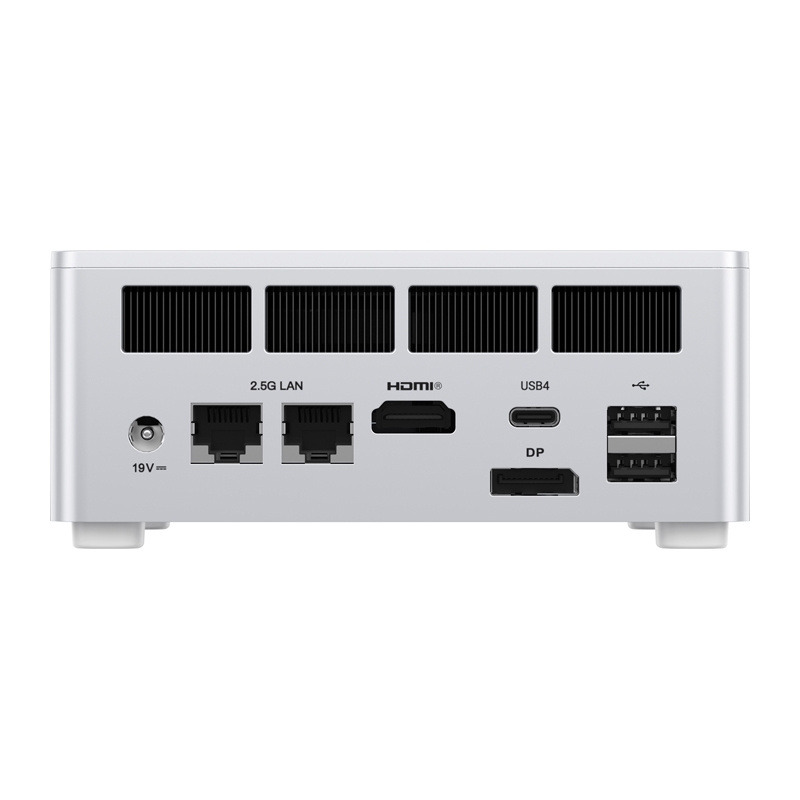

The Mini PC is equipped with a set of ports that allows the convenient connection of multiple devices without the need for additional adapters. The USB4 port, with a bandwidth of up to 40 Gbps, allows fast data transfer, video output and power to compatible devices through a single cable. The inclusion of HDMI 2.1 and DisplayPort 1.4 allows simultaneous support of up to three high-resolution monitors. This configuration is particularly suitable for office work, design, or data analysis. As a result, the workspace can be more organized and functional.

Stable network connection

The device offers two 2.5 GbE LAN ports, which provide a fast and stable wired connection. This solution is ideal for environments that require reliability, such as when working with large servers or files. The ability to use two ports also allows for more advanced network configurations. In addition, the Wi-Fi 6E module provides a fast, low-latency wireless connection. Bluetooth 5.2 makes it easy to connect accessories such as headphones, keyboard or mouse. The compact chassis makes it easy to set up the computer even in a limited workspace. The package includes a dedicated mounting bracket that allows you to install the device, for example, behind a monitor or under a desk.

inclusive

• MINIS FORUM M1 Plus Mini PC (barebone)
• 120W power adapter
• Power cable
• HDMI cable
• Set of mounting screws
• Mounting bracket
• User manual
